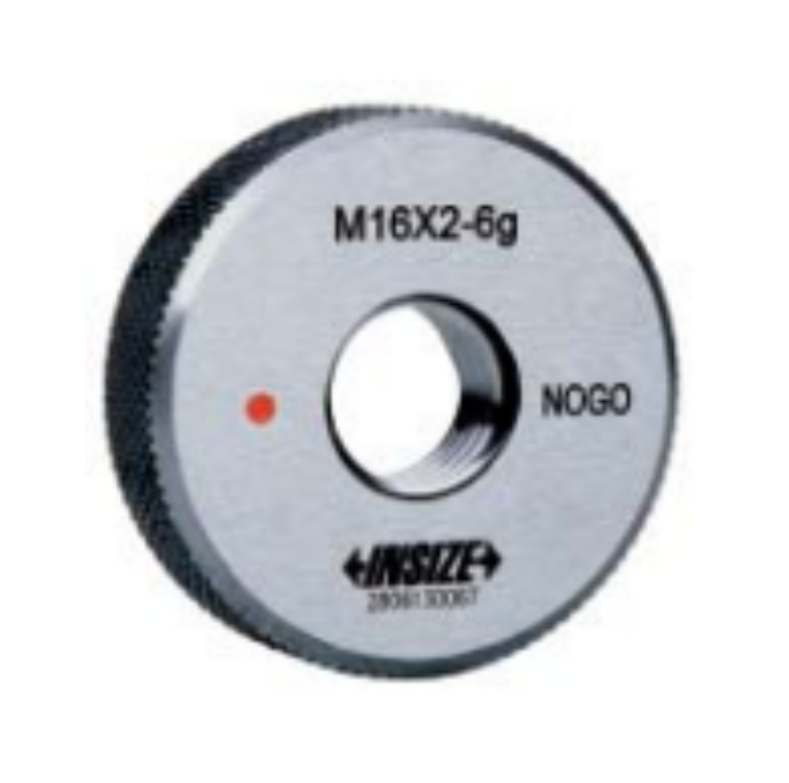

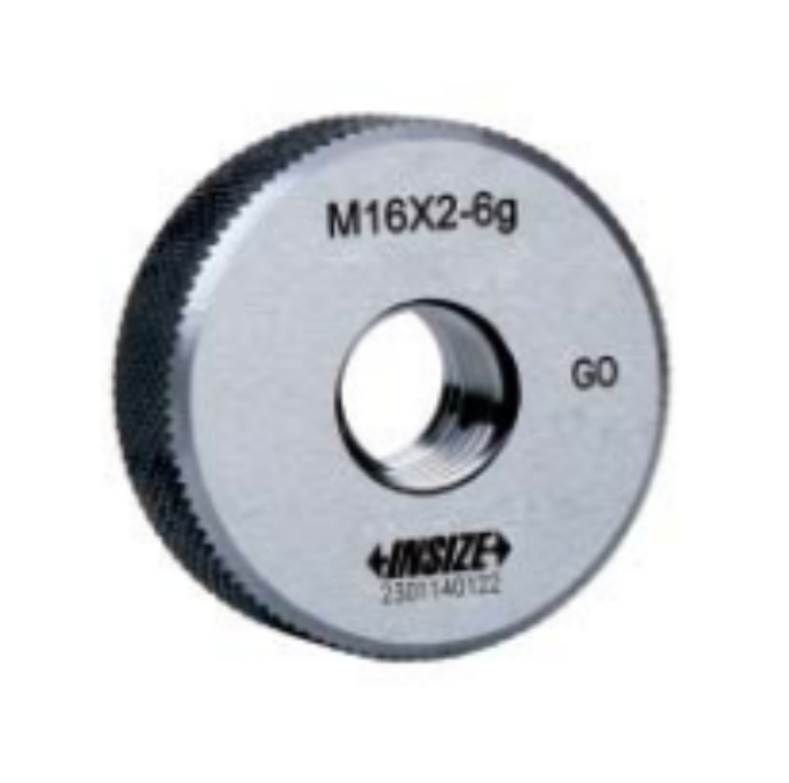

METRIC THREAD RING GAGES

Code (Go)	Code (No Go)	Size (mm)		Code (Go)	Code (No Go)	Size (mm)
4120-205*	4120-2D5N*	M2.5×0.45		4120-10*	4120-10N*	MI0x1.5
4120-3*	4120-3N*	M3x0.5		4120-12*	4120-12N*	M12x1.75
41204*	41204N	M4x0.7		4120-14*	4120-14N*	M14x2
4120-5*	4120-5N*	M5x0.8		4120-16*	4120-16N*	M16x2
4120-6*	4120-6N*	M6x1		4120-20*	4120-20N*	M20x2.5
4120-8*	4120-8N*	M8x1.25		4120-24*	4120-24N*	M24x3

METRIC THREAD PLUG GAGES

Code	Size (mm)		Code	Size (mm)		Code	Size (mm)
4130-2*	M2x0.4		4130-6*	M6x1		4130-16*	M16x2
4130-2D5*	M2.5×0.45		4130-8*	M8x1.25		4130-20*	M20x2.5
4130-3*	M3x0.5		4130-10*	MI0x1.5		4130-24*	M24x3
4130-4*	M4x0.7		4130-12*	M12x1.75
4130-5*	M5x0.8		4130-14*	M14x2
